The Fanxiang S500 Pro is an M.2 2280 NVMe SSD using a PCIe 3.0 x4 interface and 3D TLC NAND flash, delivering sequential read speeds up to 3500MB/s and write speeds up to 3150MB/s (varies by capacity). A built-in cooling fin helps manage heat during sustained use.
It's compatible with Windows 7/8/10/11 and macOS 10.9 or later, and works in any laptop, desktop, or all-in-one with an M.2 slot. The drive ships with a screwdriver and screw for installation, backed by a 3-year warranty.
Key Features
- M.2 2280 NVMe SSD with PCIe 3.0 x4 interface
- Sequential read speeds up to 3500MB/s, write speeds up to 3150MB/s (varies by capacity)

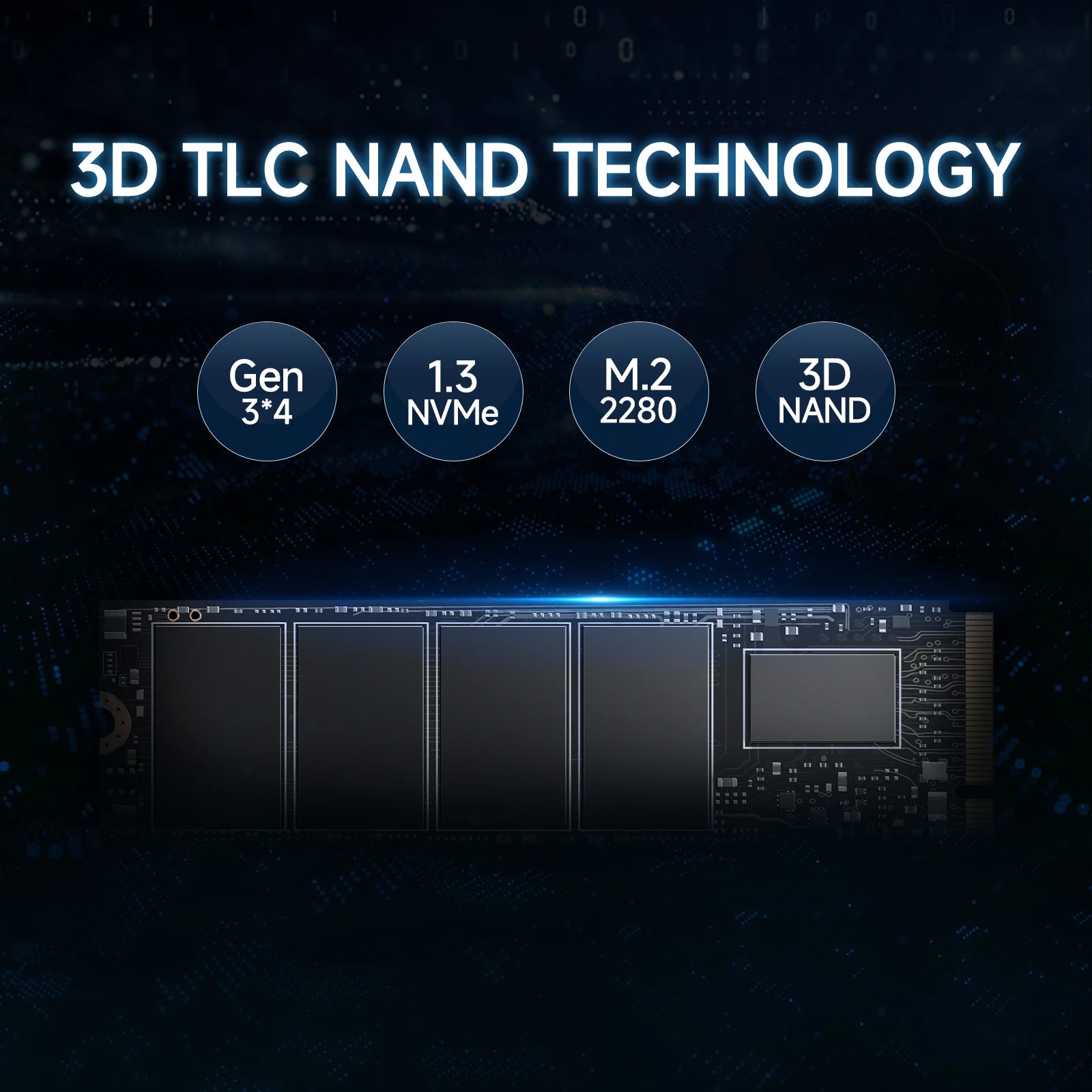

- 3D TLC NAND flash for improved endurance and stability
- Built-in cooling fin for thermal management
- Compatible with Windows 7/8/10/11 and macOS 10.9+
- Includes screwdriver and screw for installation; 3-year warranty
Specifications
Brand: Fanxiang
Model: S500 Pro
Interface: PCIe 3.0 x4, NVMe
Form Factor: M.2 2280
NAND Type: 3D TLC
Controller: MAP1202
Max Sequential Read: Up to 3500 MB/s (capacity-dependent)
Max Sequential Write: Up to 3150 MB/s (capacity-dependent)
MTBF: 1,000,000 hours
Dimensions: 80 x 22 x 2.4mm
Weight: Approximately 40g
Power: 3.7W
Operating Temperature: 0°C to 70°C
Storage Temperature: -20°C to 85°C
Warranty: 3 years
Certification: CE, FCC, RoHS, WEEE
Included Accessories: Screwdriver, screw
